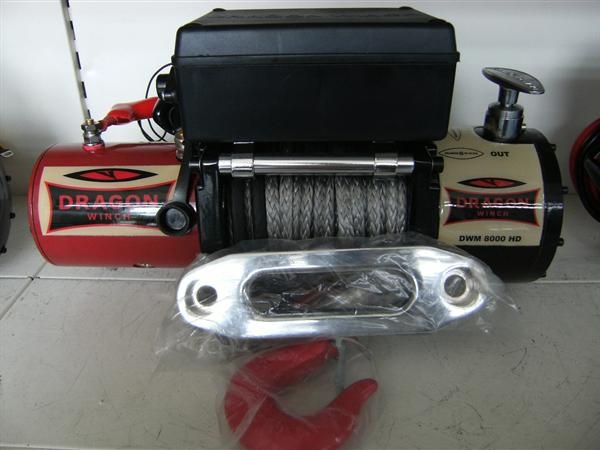

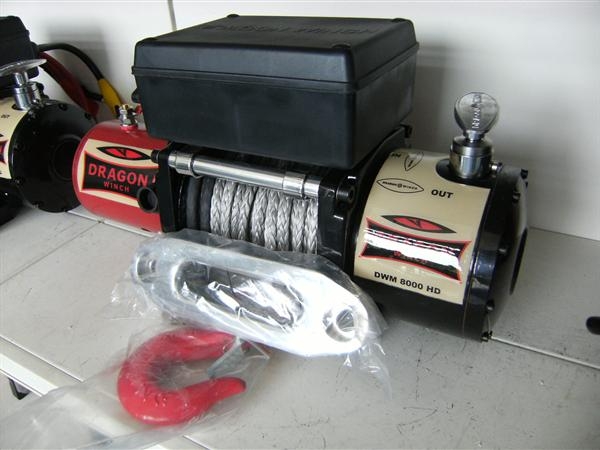

Verricello Dragon Winch 10000Lb Dyneema

Verricello rinforzato 12V 10000 lb ( 4535kg) corda in Dyneema, boccola alluminio, comando via cavo e comando radio !!!

Argano Verricello di alta qualita' ,

al contrario della stragrande maggioranza , i quali obbligano quasi sicuramente a un doppio acquisto e il piu' delle volte risultano pericolosi !!!

DRAGON WINCH DWM 10 000 HD

Dedicated for: small and medium off-road vehicles, industrial vehicles

Voltage: 12 V

Motor: 6,8 HP

Pulling rate: 10 000 Ib/ 4535 kg

Gear: 3 stage planetary

Reduction: 216:1

Brake: dynamic

Length of the wire rope: 24 m

Overall size: 450 mm x 160 mm x 245 mm

Weight: 21 kg

Spacing of mounting screws: 167 mm x 114 mm

ROPE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST ROPE LAYER ON THE DRUM

Rope load	kg	0	907	1814	3629
Rope speed	m/min	8,6	4,7	3,5	2,3
Power consumption	amp	70	160	240	390
